LAC-M6-2MD, Floating self-clinching

Product code: LAC-M6-2MD
Manufacturer: PEM

値段: お問い合わせ

Thread Size x Pitch

M6 x 1

Thread Type

Self-Locking

Thread Code

M6

Shank Code

2

A (Shank) Max.

1.38 mm

Min. Sheet Thickness

1.38 mm

Hole Size in Sheet + 0.08

13.08 mm

C Max.

13.06 mm

D Max.

12.96 mm

E ± 0.38

15.24 mm

T2 Max.

7.88 mm

Min. Dist. Hole C/L to Edge

10.67 mm

Float

0.38mm minimum, in all directions from center, 0.76mm total

Fastener Material

300 Series Stainless Steel

Fastener Materials - Retainer

300 Series Stainless Steel

Fastener Materials - Nut

300 Series Stainless Steel

Retainer Finish

Passivated and/or tested per ASTM A380

Nut Finish

Black Dry-film Lubricant

For Use in Sheet Hardness1

HRB 70 / HB 125 or Less

Thread Specification

Internal, ANSI/ASME B1.13M, 6H



LAC-M6-2MD, Floating self-clinching                        LAC-M6-2MD, Floating self-clinching

LAC-M6-2MD, Floating self-clinching

LAC-M6-2MD, Floating self-clinching

Thread Size x Pitch

M6 x 1

Thread Type

Self-Locking

Thread Code

M6

Shank Code

2

A (Shank) Max.

1.38 mm

Min. Sheet Thickness

1.38 mm

Hole Size in Sheet + 0.08

13.08 mm

C Max.

13.06 mm

D Max.

12.96 mm

E ± 0.38

15.24 mm

T2 Max.

7.88 mm

Min. Dist. Hole C/L to Edge

10.67 mm

Float

0.38mm minimum, in all directions from center, 0.76mm total

Fastener Material

300 Series Stainless Steel

Fastener Materials - Retainer

300 Series Stainless Steel

Fastener Materials - Nut

300 Series Stainless Steel

Retainer Finish

Passivated and/or tested per ASTM A380

Nut Finish

Black Dry-film Lubricant

For Use in Sheet Hardness1

HRB 70 / HB 125 or Less

Thread Specification

Internal, ANSI/ASME B1.13M, 6H



HIGHLIGHTS PRODUCTS
BS-M3-2, Self-Clinching Blind Fasteners
BS-M3-2, Self-Clinching Blind Fasteners
BS-M3-2, Self-Clinching Blind Fasteners
Price: Contact
See details  BUY NOW

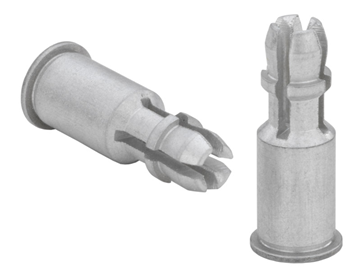

SSS-4MM-25ZI, SNAP-TOP® Standoffs
